GE MAC800 ECG Machine Mainboard 2058954-001

GE MAC800 ECG Machine Main Board V2-T9 2058954-001 With Some Connector for Resting ECG Analysis System

► Brief Description

GE MAC800 Resting ECG Analysis System Mainboard V2-T9 2058954-001

GE MAC800 ECG Machine Mainboard 2058954-001 - This board is the core component of the entire MAC800 ECG machine, and it is also the most basic component. Many important electronic components are installed on this board, generally including BIOS chips, I/O control chips, keyboard and panel control switch interfaces, indicator light connectors, expansion slots, and DC power supply connections for motherboards and plug-in cards. Plug-ins and other components. It can control many important functions on the GE MAC800 ECG Machine. All functional instructions that need to be processed will be processed by the Mainboard before execution instructions can be sent to the corresponding parts.

► Specification

► More Details

There are many connection ports on the GE MAC800 ECG Machine Main Board V2-T9 2058954-001, which mainly include ECG signal input connector, SD card slot, Modem Port, LAN connection, USB connector and COMM Port. This board is used, but will be carefully inspected before shipment to ensure its complete performance. A test video will be taken for you before shipment to ensure your rights. All our products, whether new and original or second-hand in good condition, come with a 90-day warranty. If there are any problems, please feel free to contact us for replacement or repair.

► Side Connector

1.ECG signal input connector: D-sub 15-pin female connector for acquisition cable.

2.SD card slot:Secure digital card slot. Insert the card as directed by the icon. The system only supports SD cards formatted with FAT16 or FAT32 file systems.

► Back Connector

1.Modem Port: Connect the optional internal modem to the RJ11 connector on the analog phone line.

2.LAN connection: RJ45 network connector, LED indicates LAN status.

• A solid green LED to the right of the port indicates a good Ethernet connection.

• A flashing amber LED on the left side of this port indicates network traffic.

3.USB connector: Universal Serial Bus port for USB devices such as optional barcode readers, magnetic card readers, external USB keyboards, laser printers, and USB WiFi devices.

4.COMM Port: Serial connector for data communication with a CASE/CardioSoft or MUSE system via a serial cable.

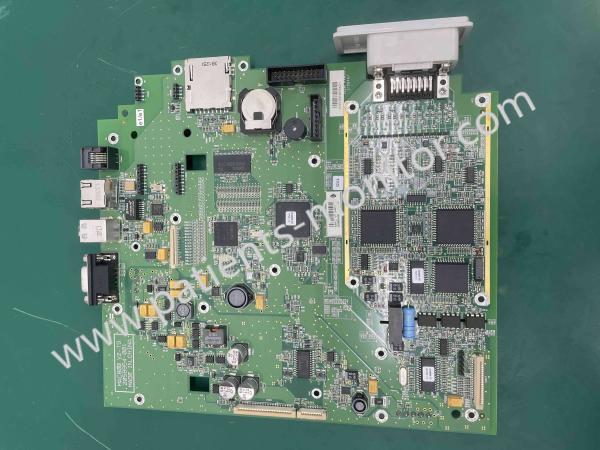

► Detailed Photos

Thanks for your interest in GE MAC800 ECG Machine Main Board V2-T9 2058954-001 With Some Connector for Resting ECG Analysis System, please feel free to contact me. Thank you for your time and wish you have a happy life.
